FAST & FREE – Youngman Minimax
Designed for indoor and outdoor use this mobile scaffold tower has variable platform heights and even fits through standard doorways and corridors whilst still folding to fit in the back of a family car.
Certified to EN 1004

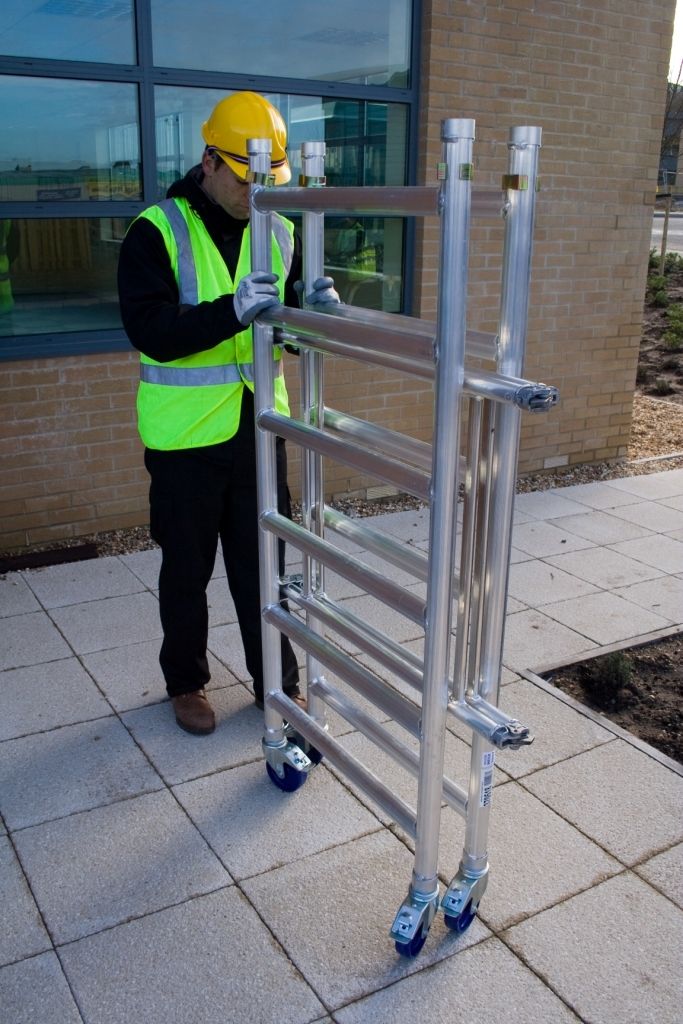

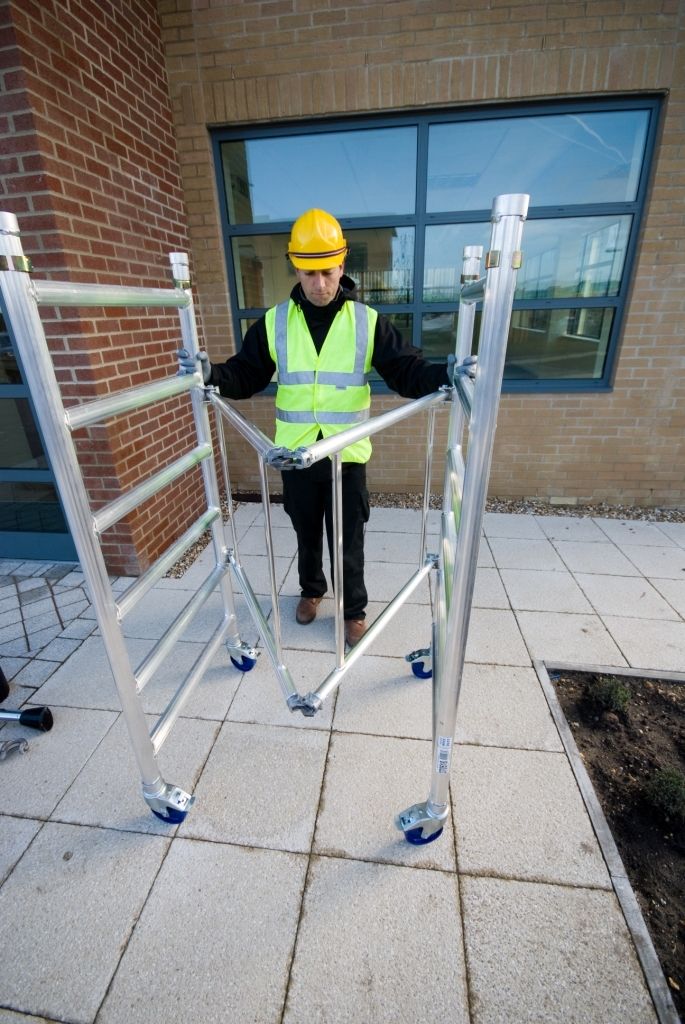

The folding base on the Minimax scaffold tower requires just one person operation. Versatile 260mm stepped height platform adjustment. Snap click fittings for easy assembly.
- Certified to EN 1004
- Lightweight Modular – available in packs: Stage1, Stage 2, Stage 3, Stage 4: simply select the working height you need to reach (maximum safe working height 7.8m)

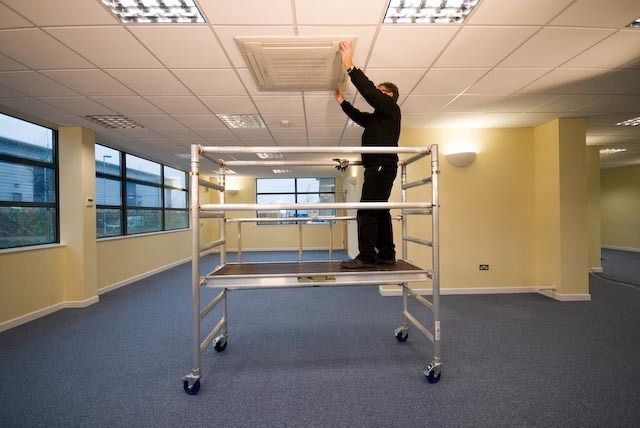

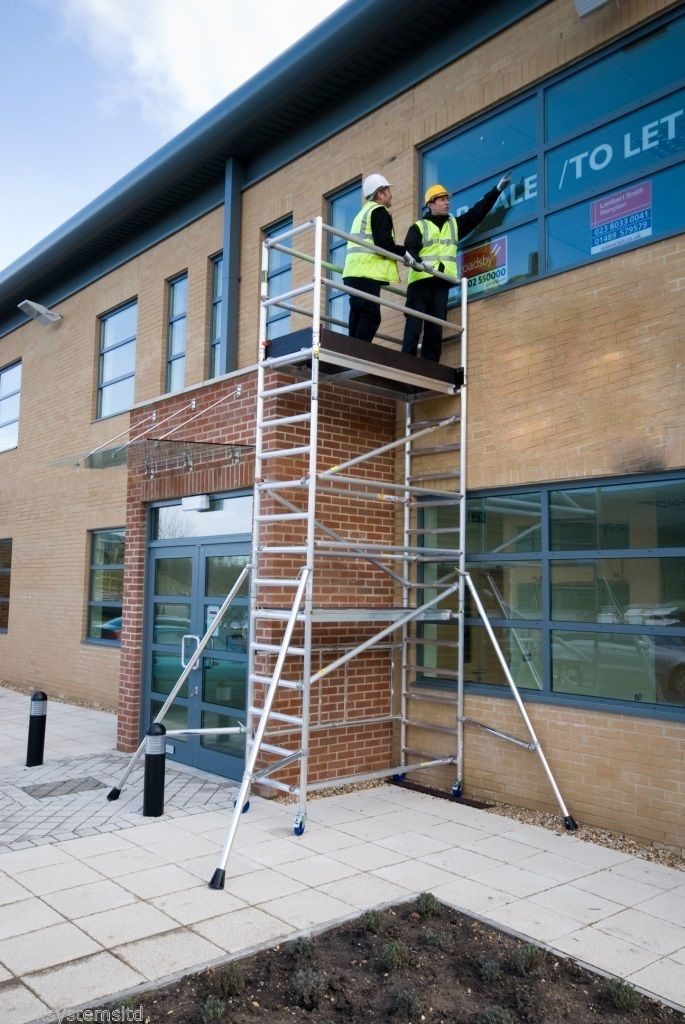

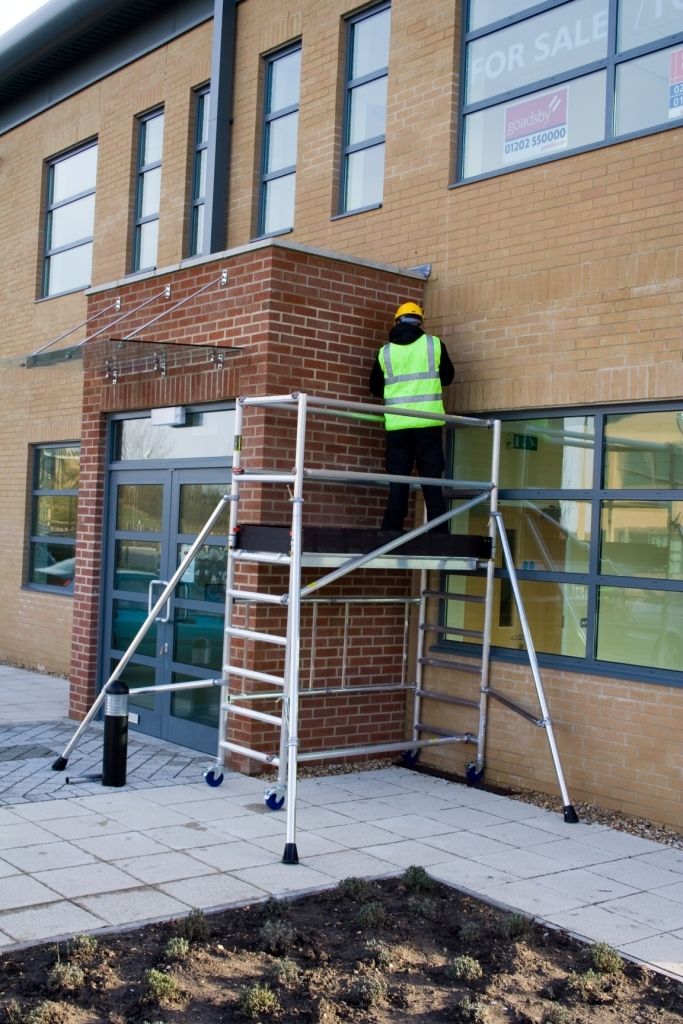

- Indoor AND outdoor use

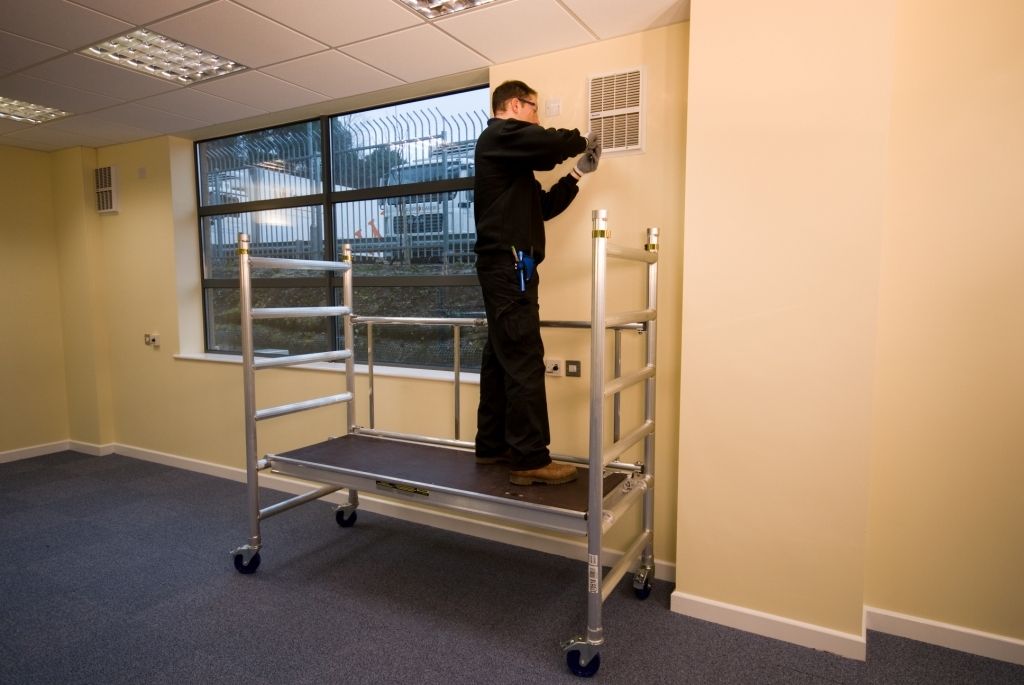

- Fits through standard doorways and down corridors
- Versatile 260mm stepped height platform adjustment
- Snap click fittings for ease of assembly
- Locking castors for ease of mobility and to hold the tower in place when in use
- One person operation of Base Unit
- Base Unit Guardrail Pack available if deck is to be used on 3rd rung or above providing a safe working height of 2.86m
- Easy to transport and store
- Extension packs can be built using the 3T – Through the Trap method with the addition of 2 horizontal braces which can be purchased separately
- The maximum platform safe working load is 200kg
| WORKING HEIGHT (m) | 2.6m | 3.7m | 5.7m | 7.8m |
| PLATFORM HEIGHT (m) | 0.6m | 1.7m | 3.7m | 5.8m |
| DESCRIPTION COMPONENT QUANTITIES | ||||
| Folding Base Frame | 1 | 1 | 1 | 1 |
| Trapdoor Platform | 1 | 1 | 2 | 3 |
| 8 Rung Frames | 2 | 4 | ||
| Diagonal Braces | 1 | 4 | 7 | |
| Horizontal Braces | 5 | 9 | 13 | |
| Toeboard | 4c | 4c | 4c | 4c |
| 1 rung Guardrail Frames | ||||
| 2 rung Guardrail Frames | 2 | 2 | 2 | |
| Small Stabilisers | 4a | 4 | ||
| Medium Stabiliser | 4 | |||
| Adjustable Legs b | 4 | 4 | 4 | 4 |
